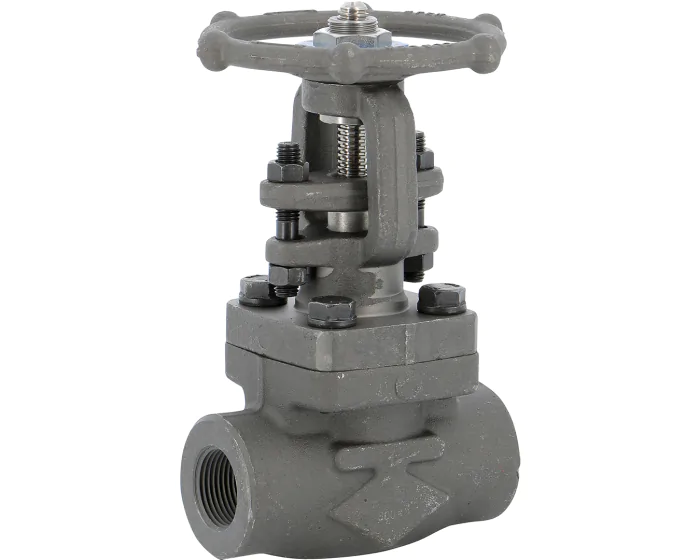

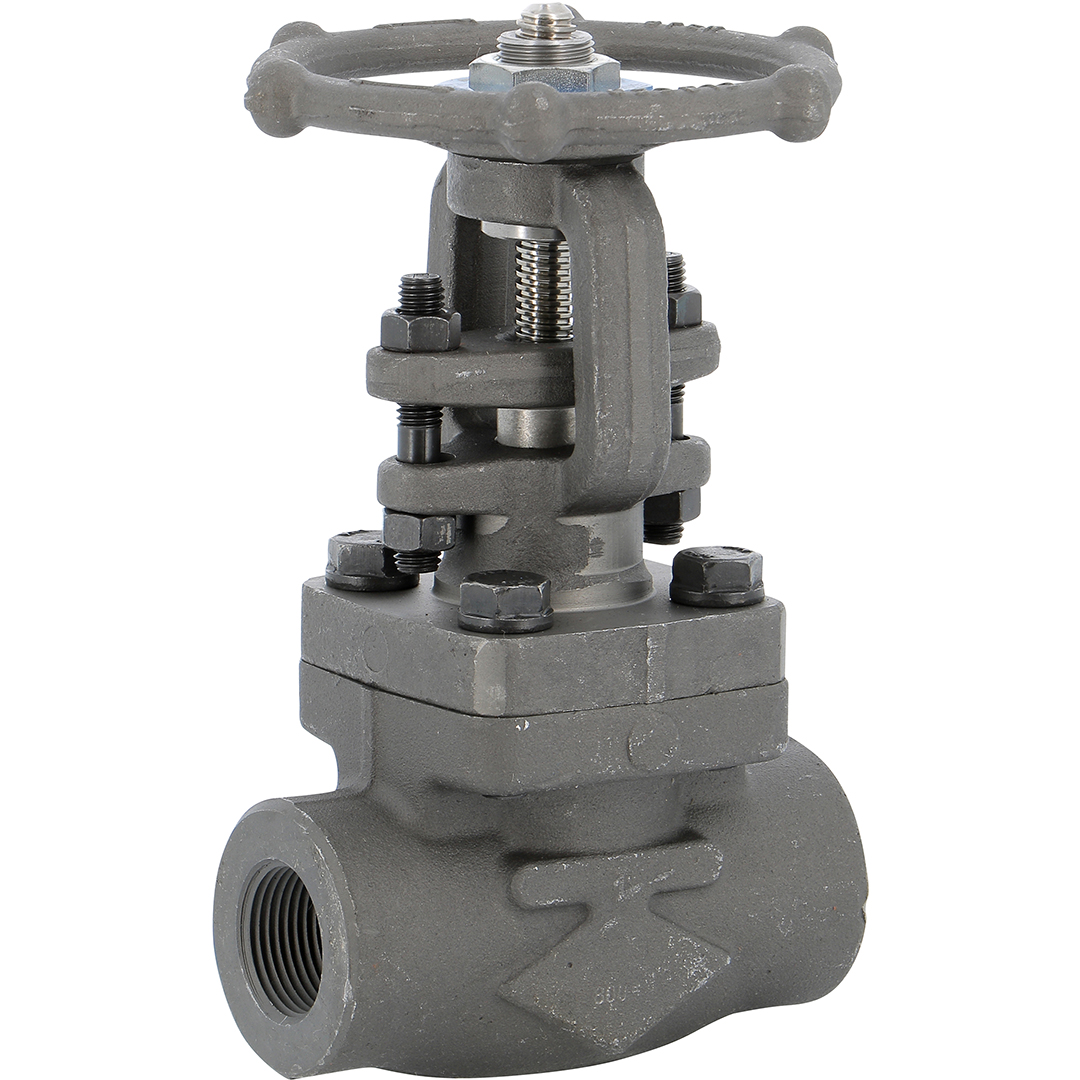

The 118 series gate valve, in forged steel A350LF2, F/F NPT, full bore, 1/2 stellite TRIM12 for oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A350 LF2 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 12 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 90.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 10 |
| Body material | Carbon steel ASTM A350 LF2 |
| Gate material | Stainless steel ASTM A182 316/316L |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 136 |
| Connections | NPT FF |
| Seats | Stainless steel ASTM A479 316 + Stellite Gr |
| TS max (°C) | 425 |
| TS min (°C) | -46 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Black |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Carbon steel ASTM A350 LF2 Standard 1/2'' | 118004 | S1007455 |
€84.76
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 3/4'' | 118005 | S1007456 |
€98.07
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 1'' | 118006 | S1007457 |
€185.79
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 1''1/2 | 118008 | S1007458 |
€320.40
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 2'' | 118009 | S1007459 |
€584.47
(excl. btw)
|
add to cart |
